Manjung Simulator System Instructor Station Features

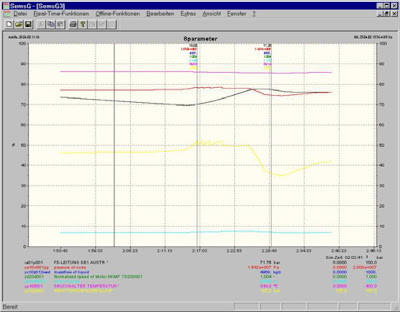

Curve Display Record Client (CDRC)

• Curve Display and Recording Client (CDRC) is used to showonline or offline trending of any analogue variable in the simulation software.Access to the variable is database supported. A set of recorded data may bestored and reloaded later for post-analysis. It can also be exported to standardWindows spreadsheet programs such as Excel.

• The CDRC is capable ofdisplaying up to 8 variables per screen and up to 10 screens.Each value axis is individually scaleable. The curves show up to four hourshistory. When the curves reach the right border they are automatically scrolledleft.In case of backtracks the curve history is restored from the session archive upto the backtrack entry point followed by a continuous update of the values withactual data from the simulation.
